Strip accumulators

Description

As a rule, composite pipe systems or pipe production systems work 7x24 hours a week. In order to guarantee endless production, we offer different accumulator ystems. Depending on the type, the accumulator systems we manufacture can process extremely thin-walled tapes or thicker tapes made of different materials. It takes some time to weld the end of the tape to a new start of the tape. Depending on the production speed, we can offer accumulator systems of different sizes.

Our tape storage systems are now used for a wide variety of applications. Wherever strip materials in the form of a coil are used, our strip storage systems can score.
Bandspeicher Aluminium
ACCUMULATOR

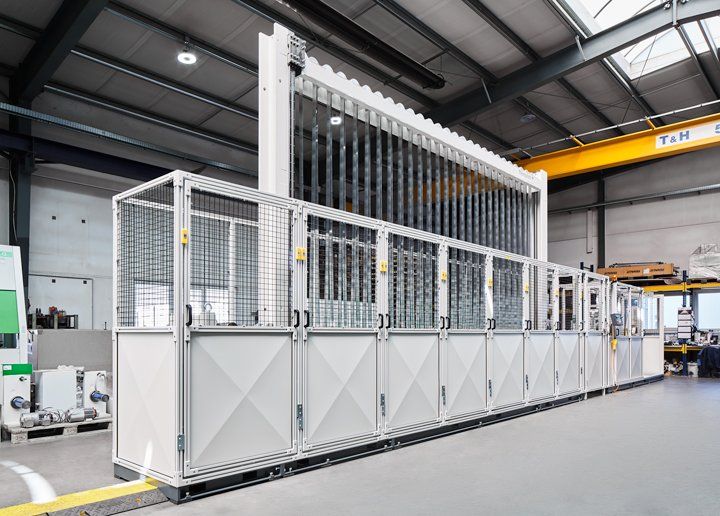

Looping Tower

The Looping Tower is an excellent choice for thin wall thicknesses. Here, the strip material is stored vertically in the strip accumulator.

learn more
Bandspeicher Edelstahl
ACCUMULATOR

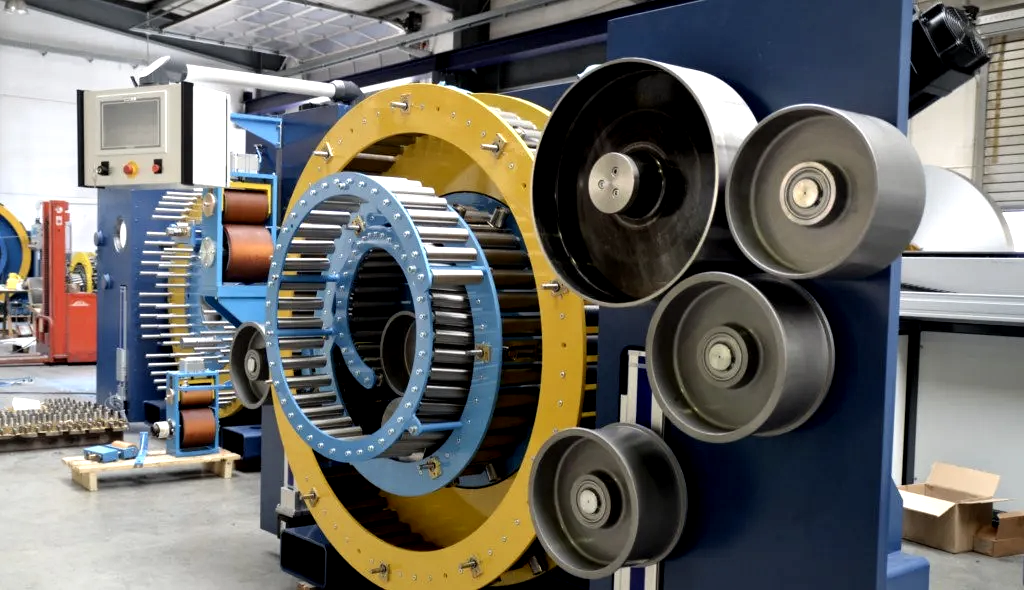

Rotamat

The Rotamat strip accumulator system is particularly suitable for stainless steel or material with thicker walls and is characterized by its compact design.
learn more
Bandspeicher
ACCUMULATOR

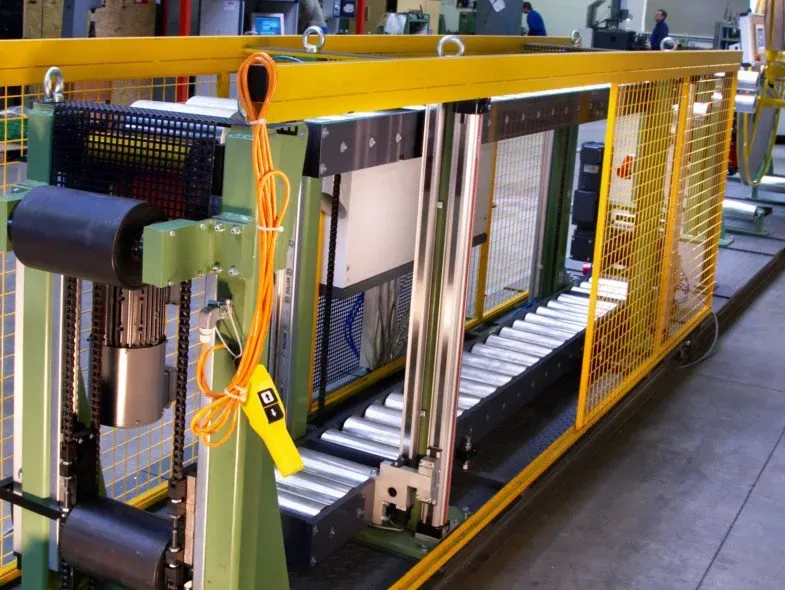

Foil Accumulator

The foil accumulator was designed for particularly thin walls (<0.15mm). Foil accumulators are often used in stabi pipe production systems.
learn more

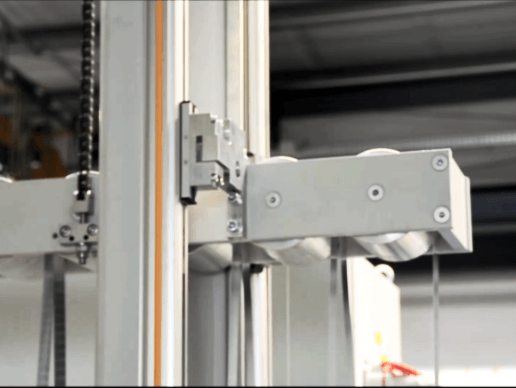

Bandspeicher induviduell
ACCUMULATOR

Special Accumulator

Do you need accumulator for a very special application?
We are happy to help you create a completely individual product.
Contact us!.
Contact

         LOOPING TOWER

Advantages:

    • Robust construction
    • Rollers on both sides
    • High speeds possible
    • Different sizes
    • Customizable for you
    • Excellent for thin walls

      Technical specifications:

        • Max. Storage capacity: 230m
        • Max. Production speed: 80m / min
        • Max. Material thickness: aluminum up to 1.8mm; Stainless steel up to 0.8mm
        • Max. Band width: 400mm

                   ROTAMAT

          Advantages:

            • Robust construction
            • Particularly suitable for stainless steel
            • High speeds possible
            • compact design (little space required)
            • different sizes
              • Rotamat 1000
              • Rotamat 1500
              • Rotamat 2000

              Technical specifications:

                • Max. Storage capacity: 150m
                • Max. Production speed: 60m / min
                • Max. Material thickness: stainless steel up to 2.5mm
                • Max. Band width: 200mm

                       FILM MEMORY

                  Advantages:

                    • Suitable for very thin walls
                    • Rollers on both sides
                    • Different sizes
                    • Customizable for you

                      Technical specifications:

                        • Max. Storage capacity: 100m
                        • Max. Production speed: 35m / min
                        • Max. Material thickness: aluminum up to 0.2mm
                        • Max. Band width: 140mm
